MSR 25LE_MSR25LE
作者：臺灣PMI導軌 發(fā)布時間：2023-07-27

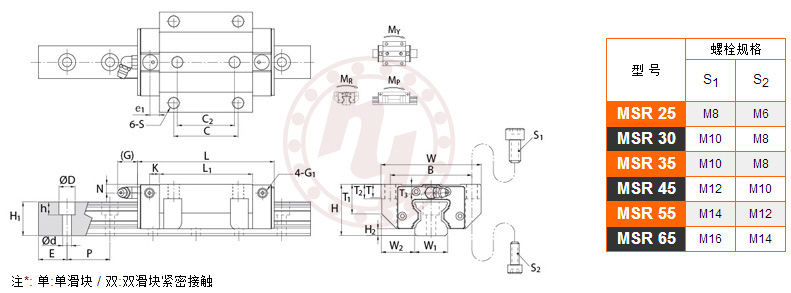

| 型號 | MSR 25LE | ||
| 外形尺寸 | H | 36 | mm |
| W | 70 | mm | |
| L | 115.5 | mm | |
| W2 | 23.5 | mm | |
| H2 | 4.8 | mm | |
| 滑塊尺寸 | B | 57 | mm |
| C | 45 | mm | |
| C2 | 40 | mm | |
| S | M8 | mm | |
| L1 | 83.5 | mm | |
| T | 9.5 | mm | |
| T1 | 20.2 | mm | |
| T2 | 10 | mm | |
| T3 | 5.8 | mm | |
| N | 6 | mm | |
| G | 12 | mm | |
| K | 6.6 | mm | |
| e1 | 6.5 | mm | |
| G1 | M6 | mm | |
| 油嘴規(guī)格 | G-M6 | mm | |
| 導軌尺寸 | W1 | 25 | mm |
| H1 | 23.5 | mm | |
| P | 30 | mm | |
| E | 20 | mm | |
| D×h×d | 11×9×7 | mm | |
| 基本額定負荷 | 動負荷(C) | 36.3 | kN |
| 靜負荷(Co) | 82.9 | kN | |
| 容許靜力矩 | Mp單* | 1.08 | kN-m |
| Mp雙* | 5.94 | kN-m | |
| My單* | 1.08 | kN-m | |
| My雙* | 5.94 | kN-m | |
| Mr | 0.95 | kN-m | |
| 重量 | 滑塊 | 0.95 | kg |
| 導軌 | 3.5 | kg/m |
